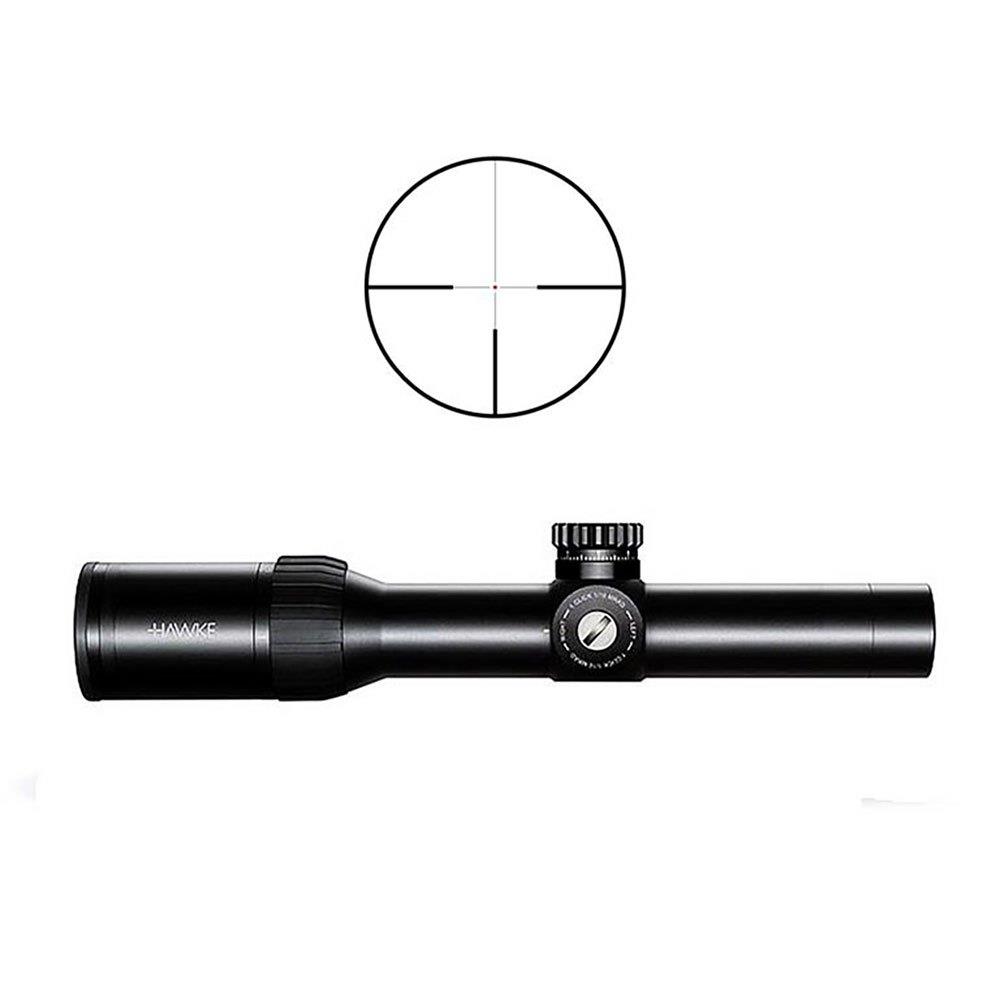

FRONTIER 30 1-6X24
L4A DOT RETICLE

DESCRIPTION
Features Hawke’s new H7 optics with high zoom ratio, supreme clarity and light transmission. Supreme accuracy for rifle shooting, driven and hunting applications

FEATURES
Capped Low-Profile Turrets
30mm Mono-Tube Chassis
Illumination
Wide Angle FOV
High Volume Eyebox
100mm Eye Relief
Multi-LED High Intensity Reticle
High Grade, Low Dispersion Crown Glass
21 Layer Fully Multi-Coated Lenses
Zoom Magnification Throw Lever (Removable)
Fast Focus Eyebell With Lock Ring
Supplied With Professional Metal Flip-Up Covers.
Nitrogen purged. Shockproof. Waterproof. Fog proof.
All calibre rated.
SPECIFICATIONS
Length: 283mm; 11.1"
Weight: 495g; 17.5oz
Eye Relief: 102mm; 4"
Focus/Parallax - Fixed: 91m; 100yds
Field of View: 37.6-6.3m @100m 112.8-18.9ft @100yds
Exit Pupil: 24 - 4m; 0.94 - 0.16"
Chassis: 30mm Mono-tube
Optical System: 3-6×
Objective: 24mm
Illumination: Red
Elevation Increment: ½ MOA
Elevation Adjustment Range: 140 MOA
Windage Increment: ½ MOA
Windage Adjustment Range: 140 MOA
Material: Aluminium
Ocular Type: Locking Fast Focus
Lens Coating: Fully Multi-Coated - 21 Layers
Power Selector Style: Removable Zoom Lever
Focal Plane: Second Focal Plane (SFP)
Turret Caps: Yes
Turret Type: Capped Low-Profile Turrets
