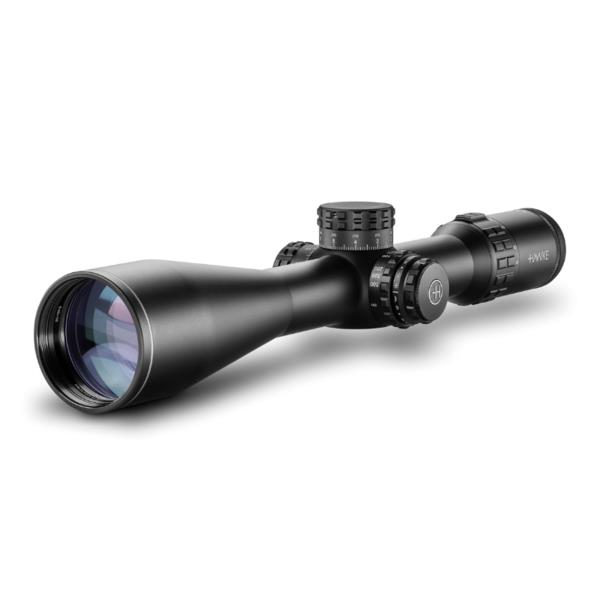

Hawke Frontier 34 FFP 5-30x56 SF IR MIL

All models feature Hawke's new H7 optics with high zoom ratio, supreme clarity and light transmission.

Precision build components and larger 34mm monotube construction designed for extreme long range shooting.

FEATURES

Patented Exposed Zero Lock ‘N’ Stop Elevation Turret
First Focal Plane (FFP)
34mm Mono-Tube Chassis
Side Focus
Illumination
Wide Angle FOV
High Volume Eyebox
102mm Eye Relief
Multi-LED High Intensity Reticle
High Grade, Low Dispersion Crown Glass
21 Layer Fully Multi-Coated Lenses
Zoom Magnification Throw Lever (Removable)
Fast Focus Eyebell With Lock Ring
Supplied With Professional Metal Flip-Up Covers.
RETICLE

FFP Mil Pro Ext. Reticle (30x)

The FFP Mil Pro Ext. reticle was developed specifically for first focal plane optical systems and based around the common principles of Mil spaced reticles. With Mil spaced markings extending out to 15 Mil of holdover, the FFP Mil Pro Ext is a versatile reticle that provides aim points no matter how extreme the distance.

All reticle measurements are Mil spaced and offer 1 Mil, 0.2 Mil and 0.1 Mil brackets for range finding. Every Mil spacing on the lower section is numbered to ensure quick and easy acquisition of target and ease of reference.

The thick outer posts are hollowed to ensure they can be seen at all magnifications, without blocking out too much of the view.

FFP MOA Pro Ext. Reticle (30x)
The FFP MOA Pro Ext. reticle was developed specifically for first focal plane optical systems and based around the common principles of MOA spaced reticles. With MOA spaced markings extending out to 60 MOA of holdover, the FFP MOA Pro Ext. is a versatile reticle that provides aim points no matter how extreme the distance. All reticle measurements are MOA spaced and offer 1 MOA and 0.5 MOA brackets for range finding. Every fourth MOA spacing on the lower section is numbered to ensure quick and easy acquisition of target and ease of reference.

The thick outer posts are hollowed to ensure they can be seen at all magnifications, without blocking out too much of the view.

SPECIFICATIONS

Length
392mm / 15.4"
Weight 830g / 29.3oz
Eye Relief 102mm / 4"
Focus/Parallax - Fixed Focus 14m - ∞ / 15yds - ∞
Field of View 7.5 - 1.3m @100m / 22.5 - 3.8ft @100yds
Exit Pupil 11.2-1.9mm / 0.44-0.07"
Chassis 34mm Mono-tube
Optical System 5-30x
Objective
56mm
Illumination
Red (11 Levels with Off Positions In-between)
Reticle Mil Pro Ext / MOA Pro Ext
Elevation Increment 1⁄10 MRAD / 1⁄4 MOA
Elevation Adjustment Range 29 MRAD / 99 MOA
Windage Increment 1⁄10 MRAD / 1⁄4 MOA
Windage Adjustment Range 15 MRAD / 53 MOA
Material Aluminium
Ocular Type Locking Fast Focus
Lens Coating
Fully Multi-Coated - 21 Layers
Power Selector Style Removable Zoom Lever
Focal Plane First Focal Plane (FFP)
Turret Caps No
Turret Type
Exposed Zero Lock 'n' Stop Turrets
