Hawke Vantage IR 4-12x50 IR .22 Sub 12x

All Vantage riflescopes feature our H2 optics in a variety of configurations.

IR models feature precision glass etched reticles with multi-stage illumination in both red and green.

Designed for long-range shooting, especially in low-light conditions, with a subsonic .22 LR round, the Hawke Sports Optics 4-12x50 Vantage IR Riflescope boasts a large objective to draw in generous amounts of light to allow its use at dawn and dusk, or in heavily canopied areas. To further improve the scope's performance, all of its optical surfaces are fully multi-coated to boost light transmission and improve color fidelity, contrast, and image brightness. A large objective also helps to produce a wide exit pupil, even at the highest magnification, to ensure that when the eye dilates in low-light the entire field of view is easy to see without having to move your eye or head to see the whole scene.

Its partially-illuminated crosshair reticle is built around the specific ballistic characteristics of a subsonic .22 LR round and is subtensioned to be zeroed at 50 yards with pre-set illuminated aiming crosses out to 200 yards for fast and precise shot placement. It has five selectable brightness levels in either red or green so it can be customized for most lighting and weather conditions. Red is ideal for low-light conditions or in areas with a very green background where a green reticle can get lost; while green light is easier to see in bright sunlight versus red. Covered turrets help guard against accidental adjustments while a fast-focus collar and knurled rheostat allow you to quickly adapt to rapidly changing situations. Complementing the performance of the scope is a lightweight and durable anodized aluminum housing, with a 1" one-piece maintube that is nitrogen-filled and O-ring sealed to be water and fogproof.

Key Features
Subsonic Rimfire .22 Illuminated Reticle
5 Brightness Levels in Red or Green
1" One-Piece Maintube
1/4 MOA / Click Impact Point Correction
80 MOA Windage / Elevation Adjustment

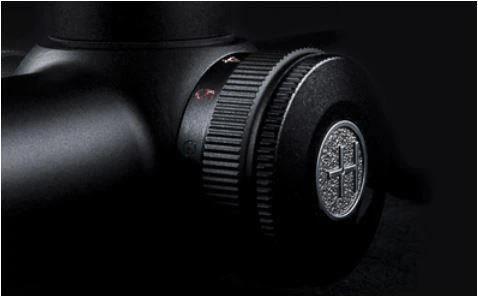

Low-Profile Capped Turrets
Anodized Aluminum Alloy Housing

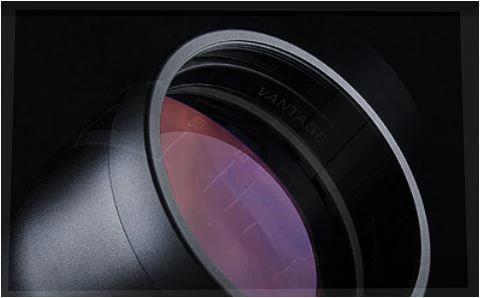

11-Layer Fully Multi-Coated Optics
Nitrogen-Filled, Water and Fogproof
Runs on One CR2032 Battery
All calibre rated.

Hawke Warranty.

Rimfire .22 LR Subsonic 12x Reticle
Registered reticle design exclusive to Hawke. Aim points calculated for your specific caliber. Easy to zero and outstanding downrange accuracy with illuminated aim points for all lighting conditions. Distances etched into the reticle field of view, designed for use on maximum magnification.

Designed for the .22 LR Subsonic caliber. Zero on 12x magnification at 50 yards and all aim points are pre-calculated. 1057 fps (322 m/s).

The scope can also be used for 50m zero with aimpoints correct in metric when the magnification is set to 10.5x.



PRESET CORRECT @ 12.0x magnification for Yards or 10.5x magnification for Metres.
Muzzle Velocity:

1057 ft/s

Ballistic Coefficient:

0.1730

Zero(ed) Range:

50 yds

Scope Height:

1.75″





Technical Specifications;

Length:

341mm
13.4"

Weight:

497g
17.5oz

Eye relief:

89mm
3.5"

Focus/Parallax - Fixed Focus

69m
75yds

Field of View:

8.7-2.9m @100m
26.2-8.7ft @100yds

Exit Pupil:

12.5-4.2mm
0.5-0.2"

Chassis

1" Mono-tube

Optical System

4-12x

Objective

50mm

Illumination

Red / Green

Reticle

Rimfire .22 LR Subsonic

Elevation Increment

1⁄4 MOA

Elevation Adjustment Range:

80 MOA

Windage Increment

1⁄4 MOA

Windage Adjustment Range

80 MOA

Material

Aluminium

Ocular Type

Fast Focus

Lens Coating

Fully Multi-Coated - 11 Layers

Power Selector Style

Knurled Posi-Grip

Focal Plane

Second Focal Plane (SFP)

Turret Caps

Yes

Turret Type

Low Profile
