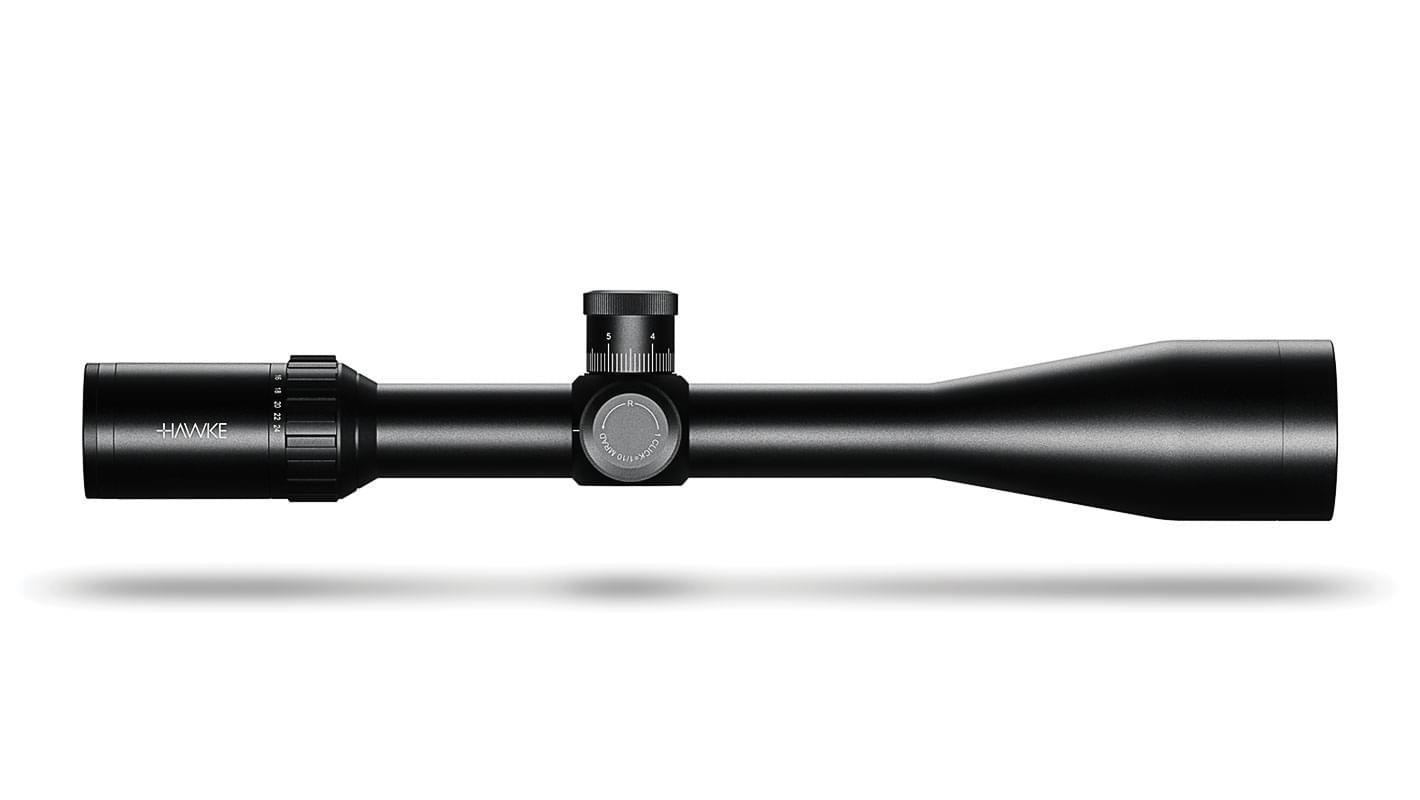

VANTAGE 30 WA SF 6-24×50 ½ MIL DOT IR

Wide Angle optical system
11 layer fully multi-coated optics for excellent clarity
Side focus control for parallax adjustment to infinity
30mm mono-tube chassis for superior strength
Glass etched reticle with red and green illumination
Rheostat on saddle offers 5 levels of brightness
1⁄10 MRAD exposed and locking turrets
Fast focus eyebell and high torque zoom ring

Chassis:30mm Mono-tube
Optical System:6-24×
Objective:50mm
Reticle:10× Half Mil Dot
Illumination:Red / Green - 5 Levels
Focus/Parallax:Side Focus - 9m / 10yds to Infinity
Field of View: m @100m / ft @100yds6.9-1.8m / 20.7-5.4ft
Eye relief:90mm / 3.5″

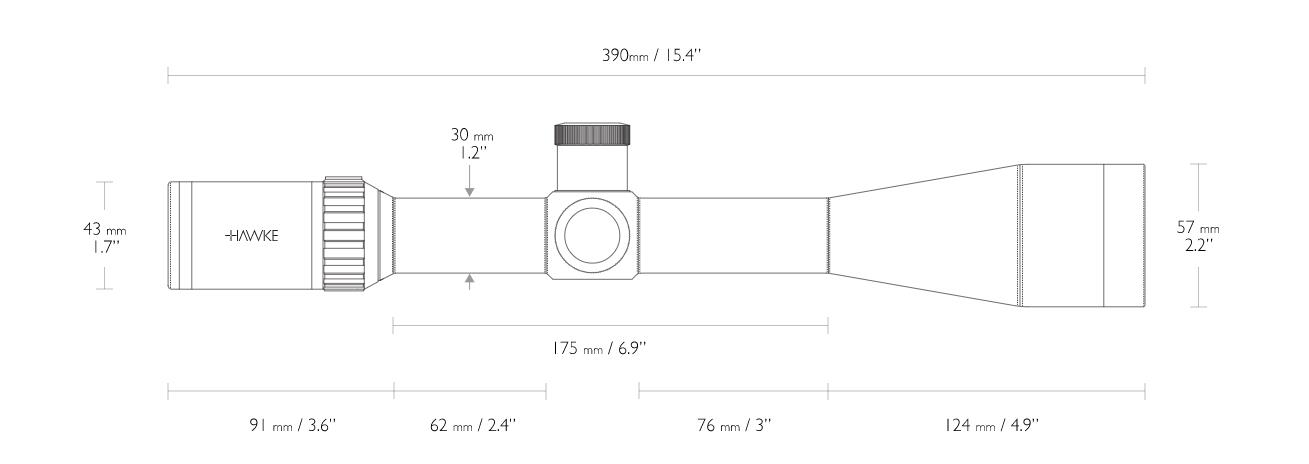

Length:390mm / 15.4″
Weight:745g / 26.3oz
Waterproof, Shockproof, Nitrogen purged.
All calibre rated.

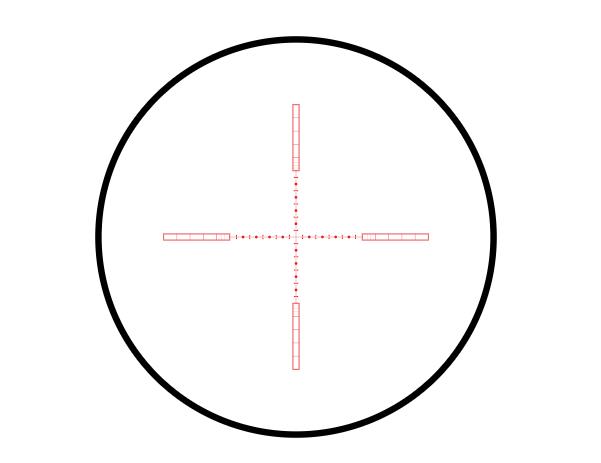

10× HALF MIL DOT RETICLE
Accurate mil spacing on 10×. Features dots and ties at half mil spacing, ensuring that there is always an aim point available. Glass etched fully floating reticle.

One of the additional benefits of the 10x Half Mil Dot is the mil spacing and 0.2 mil spacing segments of the hollow bars which can be used to accurately range find targets.

Material:Aluminium
Exit Pupil:8.3-2.1mm / 0.33-0.08″
Ocular Type:Fast Focus
Lens Coating:Fully Multi-Coated - 11 Layers
Power Selector Style:Knurled Posi-Grip
Focal Plane:Second Focal Plane (SFP)
Warranty:Hawke Worldwide Warranty
Elevation Increment:1⁄10 MRAD
Elevation Adjustment Range:20 MRAD
Windage Increment:1⁄10 MRAD
Windage Adjustment Range:20 MRAD
Turret Caps:YES
Turret Type:Exposed, Locking
