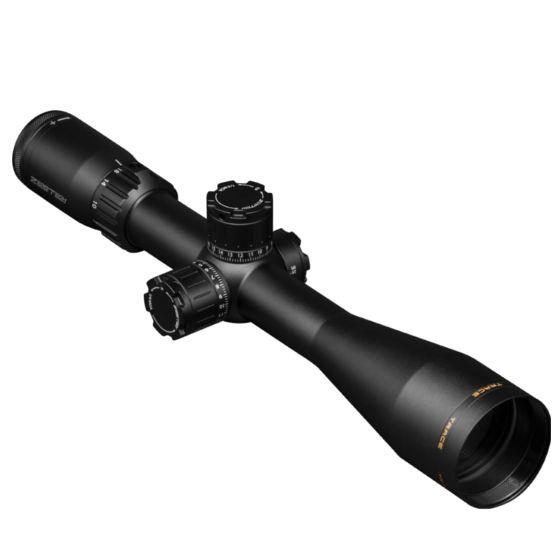

Zerotech 4.5-27x50 R3 SFP Trace Duplex Recticle 30mm

TRACE
4.5-27x50mm R3

TRACE – delivering everything you need and nothing you don’t, to execute the most precise and technical shooting results in the most challenging conditions.

R3 SFP reticle
30mm tube
HD alloy flip-up covers
Half Magnification Index (HMI)
Precision Turret System (PTS)
Zero Stop
92% Light Transmission
Glass etched reticle
Weathershield lens coating

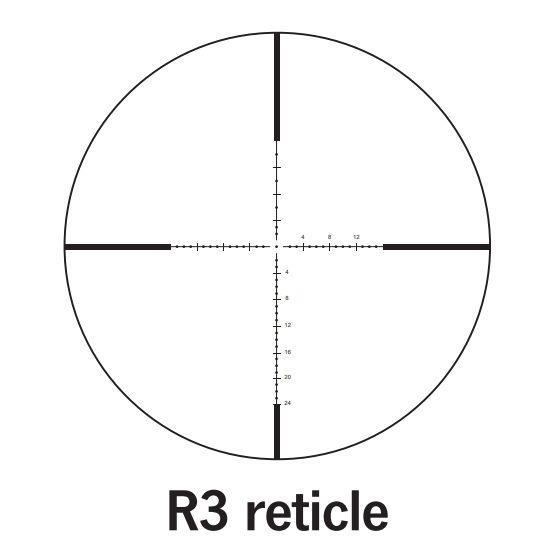

R3 SFP RETICLE
The R3 reticle allows the shooter to enjoy all aspects of a second focal plane (SFP) scope without losing the ability to ‘hold over’ with extreme precision for long range shots.

The R3 features a floating center dot and subtensions of 1 MOA marked by dots with a hash mark every 4 MOA. Heavy bars at 3, 6, 9 and 12 o’clock make target acquisition a breeze.

IN THE BOX
Heavy Duty Alloy Flip-Up Covers
Locking Ring Tool For HD Flip-Up Covers
Turret Allen Key
3 Spare Turret Grub Screws
Instruction Manual
Reticle Range Chart
High Quality Microfiber Cloth

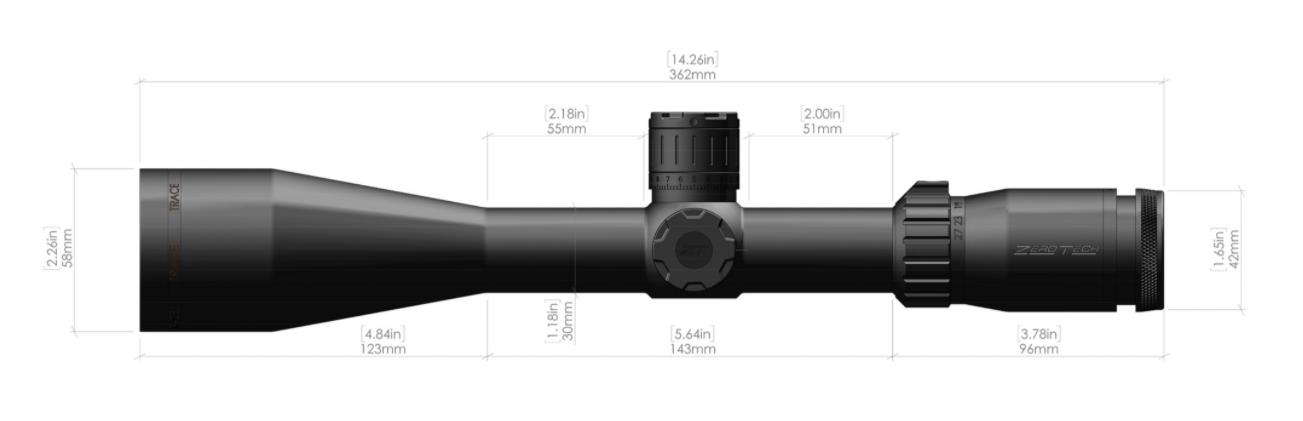

4.5-27×50 SPECIFICATIONS
Focal Plane Second (SFP)
Reticle calibrated magnification power (SFP only) 20x
Magnification Range 4.5-27x
Objective Lens Diameter 50mm
Maintube Diameter 30mm
Zero Stop Yes
Turret Index Value 0.25MOA
Internal Elevation Adjustment 60MOA
Internal Windage Adjustment 60MOA
Parallax Adjustment Range 25 Meters – Infinity
Exit Pupil Diameter Low: 9.5mm; High: 1.9mm
Eye Relief 91-100mm
Field Of View @100 Meters Low:7.4m; High: 1.3m
Objective Outer Diameter 57.5mm
Ocular Outer Diameter 43.5mm
Weight 824g (1.8lbs)
Available Reticles R3
Illumination No
Light Transmission 92%
Reticle Manual Download PDF

Product Manual Download PDF
